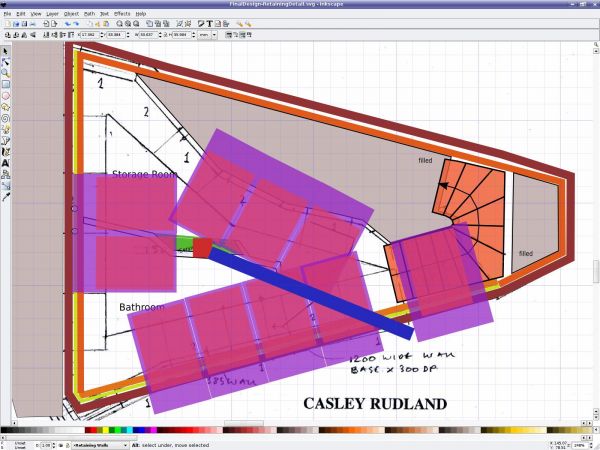

The pink and purple rectangles each represent a panel drawn to scale. This drawing only shows ten of the panels illustrating that there really wont be a channel down the center of the building. The blue rectangle is the new position for the drainage channel.
